Clockface positions in accordance with table 103 taken from EN 60309-2:1999 + A1:2007 + A2:2012
Rated operating voltage V | Frequency Hz | Clockface position of keyway (major keyway = 6 o´clock) |
20 to 25 | 50 and 60 | no minor keyway |
40 to 50 | 50 and 60 | 12 |
20 to 25 and 40 to 50 | 100 to 200 300 400 Ãœber 400 to 500 DC | 4 2 3 11 10 |
25 | DC* | 8 * for portable electrical incubators – use with 12 V or 24 V direct-current voltage in ambulances or helicopters. |
Positions 1 and 9 are reserved for future standards. For design reasons, positions 5, 6 and 7 are not available for use.

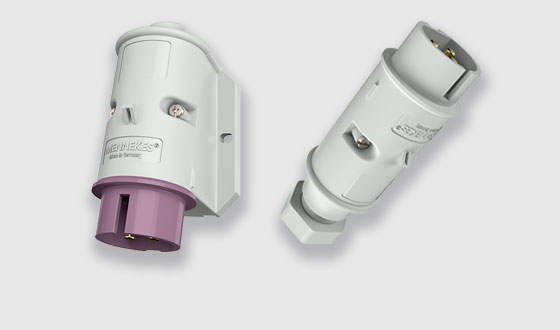

Colour coding
If the rated operating voltage is indicated by a colour coding in addition to compulsory markings, such colour coding must be in accordance with IEC 60309-1:1999, table 2:
Rated operating voltage | Colour code | RAL* |
20 to 25 V | violet | 4001 |
40 to 50 V | white | 7035 |
* RAL determined by MENNEKES, as in EN 60309-1:1999 no specification is provided for.

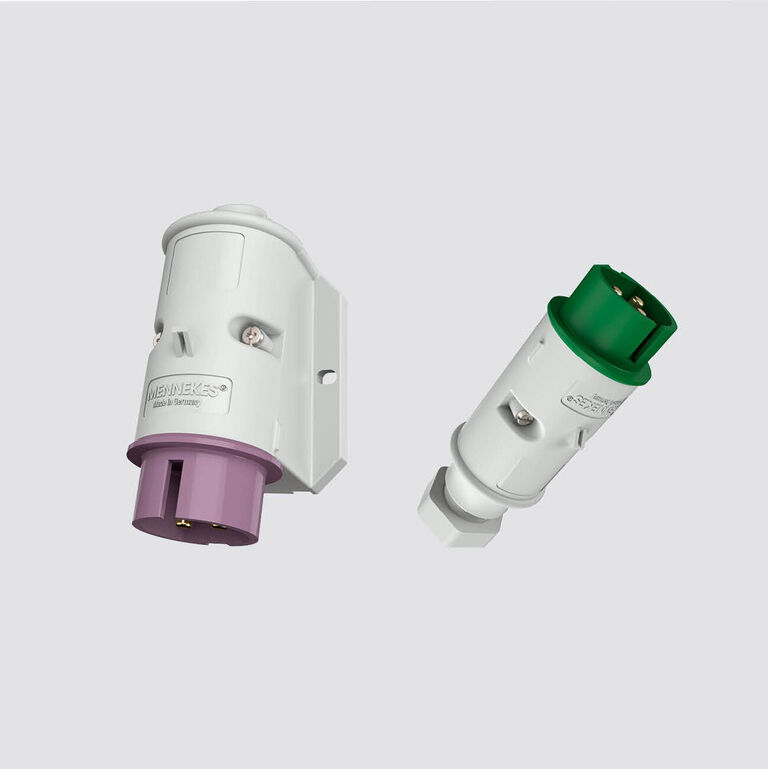

额定电压最高为50V 的CEE 插接装置（低压）
因为额定电压为50V 以下的插接装置不需要带接地极。因此我们用两个键槽(一主一辅)代替原来的一个键 槽。主键槽始终位于时钟6 点位置。辅助键槽根据电压和频率值按照EN 60309-2:1999 的103 表格进行设 置（见下文）。

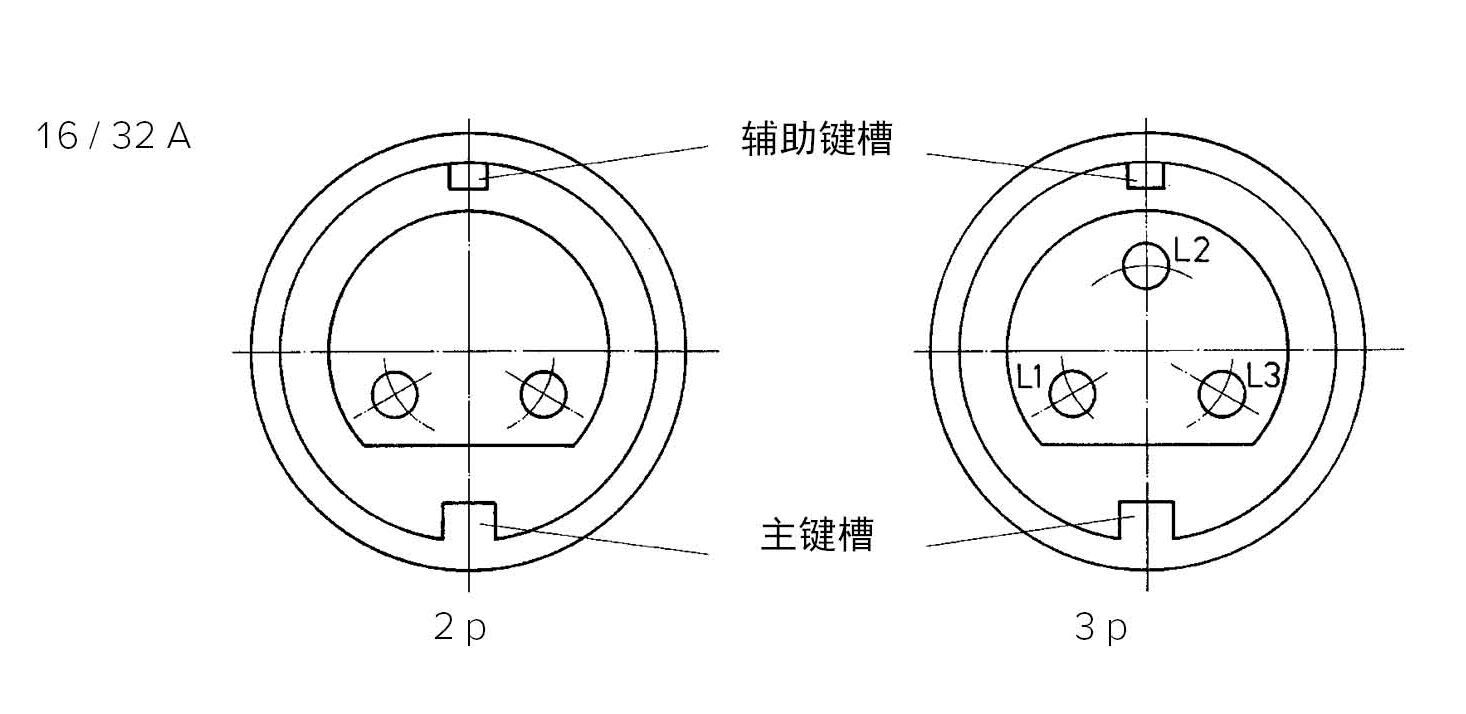

图纸：插座和连接器 U = 40至50 V，50至60 Hz，辅助键槽位于时钟12点位置
不同电压和频率的辅助键槽分布
Rated operating voltage V | Frequency Hz | Clockface position of keyway (major keyway = 6 o´clock) |
20 to 25 | 50 and 60 | no minor keyway |
40 to 50 | 50 and 60 | 12 |
20 to 25 and 40 to 50 | 100 to 200 300 400 > 400 to 500 DC | 4 2 3 11 10 |
25 | DC* | 8 * for portable electrical incubators – use with 12 V or 24 V direct-current voltage in ambulances or helicopters. |
Positions 1 and 9 are reserved for future standards. For design reasons, positions 5, 6 and 7 are not available for use.
除非强制规定，否则用彩色编码标示额定工作电压时，必须依照IEC 60309-1:1999中的表2：
Rated operating voltage | Colour code | RAL* |
20 to 25 V | violet | 4001 |
40 to 50 V | white | 7035 |
* RAL由曼奈柯斯设定，在EN 60309-1:1999中没有此类规范。
